Rugged Industrial EZ Mesh Access Point Dual RF, 1x 802.11an+1x 802.11 b/g/n 2x2 MIMO

Main Feature
  • Dual radios and compliant with 1 x 802.11an+1 x 802.11 b/g/n 2x2 MIMO
  • 1+4 port GbE RJ45 ports
  • Up to 27dBm high RF power
  • Multiple functions: AP/Client router/EZ Mesh
  • Support 12V DC input
  • Support -40~80°C extended operating temperature

IWF 310 is QCA9344-based rugged industrial-grade AP/Router/EZ MESH AP designed with Aluminum and Metal Chassis, and IEEE802.11b/g/n 2x2 MIMO and IEEE802.11an/a 2x2 MIMO technology. IWF 310 can deliver data rate up to 300Mbps/each radio. In addition, the Radio power can be up to 27dBm for wide range coverage and service. IWF 310 also functions as EZ MESH network Wi-Fi access with cost-effective option.

Wireless Radio 1x IEEE 802.11an 2x2 MIMO
1x IEEE 802.11 b/g/n 2x2 MIMO
Frequency Ranges USA: 2.400~2.483 GHz, 5.15~5.35 GHz, 5.5~5.7 GHz, 5.725~5.825 GHz
Europe: 2.400~2.483 GHz, 5.15~5.35 GHz, 5.47~5.725 GHz
* Note: The available frequency range may be different according to different certification.
RF Output Power : IEEE 802.11an(±2dBm) IEEE802.11a
- 27dBm@54M
IEEE802.11a/n HT20
- 25dBm@MCS7
IEEE802.11a/n HT40
- 24dBm@MCS7
RF Output Power : IEEE 802.11 b/g/n(±2dBm) IEEE802.11b
- 27dBm@1M
- 24dBm@11M
- 27dBm@6M
- 24dBm@54M
IEEE802.11g/n HT20
- 23dBm@MCS0/8
- 19dBm@MCS7/15
IEEE802.11g/n HT40
- 22dBm@MCS0/8
- 18dBm@MCS7/15
Receive Sensitivity : IEEE 802.11an IEEE802.11a
IEEE802.11a/n HT20
IEEE802.11a/n HT40
Receive Sensitivity : IEEE 802.11 b/g/n IEEE802.11b
- 93dBm@1M
- 91dBm@11M
- 94dBm@6M
- 80dBm@54M
IEEE802.11g/n HT20
- 94dBm@MCS0/8
- 77dBm@MCS7/15
IEEE802.11g/n HT40
- 89dBm@MCS0/8
- 73dBm@MCS7/15

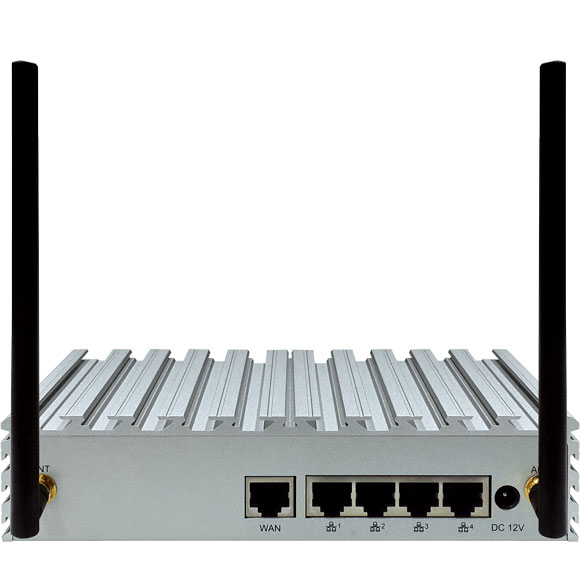

Hardware WAN: 10/100/1000 Base-TX MDI/MDIX RJ-45 x 1
LAN: 10/100/1000 Base-TX MDI/MDIX RJ-45 x 4
Compliant with :
- IEEE802.3 / 802.3u
- Hardware based 10/100/1000, full/half, flow control auto negotiation
Push buttons: 1x Reset
LED: 1x power& status; 5x Ethernet
Antenna connectors: 2x with RP-SMA
Operating Mode AP
Client router
EZ mesh
Security WEP(64/128)
WPA/WPA2 Mixed
WPA2-personal (PSK+CCMP/AES)
Hidden ESSID support
MAC address filtering (MAC ACL)
System Management Web-based administration
SYSLOG information support
Configuration backup and restore
One-button-click to restore factory default setting
Firmware upgrade
Built-in Servers & Client Interfaces to Other Services DHCP client
SNMP v1/v2c client
Physical and Power 12VDC power input with DC jack
Wall mountable
Dimension: 185 x 108 x 43 mm
Environment Protection Operating temperature: -40~80°C
Storage temperature: -45~85°C
Humidity: 0% to 95% maximum (Non-condensing)
Vibration: Random 0.3g
Certification FCC
RoHS compliant
Package Contents IWF310 unit x 1
Dual band antenna x 2
Wall-mount kit x 1
AC-DC power adaptor x 1
