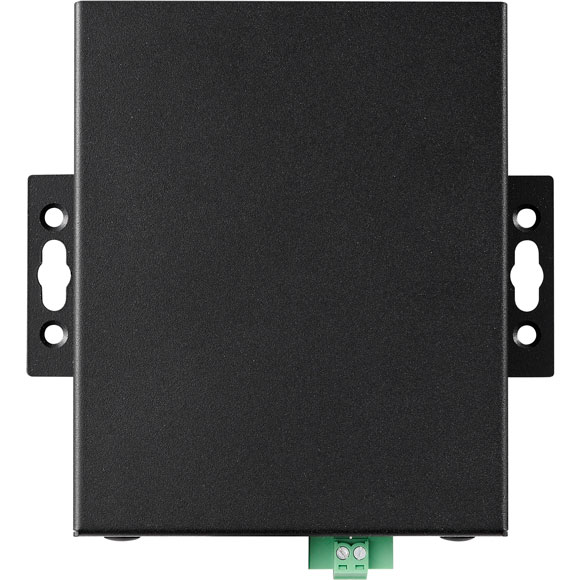

EBX-501
EBX-501
Linux-ready Industrial IoT Gateway
Main Feature
H/W Specifications
| CPU/Memory | CPU: Atmel ATSAMA5D35 536MHz w/MMU SDRAM: 512MB, LPDDR2 with eMMC Flash |
|---|---|
| Network Interface | Type: 1 x Gigabit Ethernet Connector type: RJ45 LED indicator (at connector): Link, Ready |
| mini-PCIe Slot | 1 x mini-PCIe socket (full-size) Reserved for LTE-U mini-PCIe module |
| SIM Card Socket | 1 x micro-SIM card socket , USB interface reserved |
| Antenna | 2 x Antenna (SMA) hole |
| SD Slot | 1 x micro-SD socket SD 2.0 compliant, supports SDHC |
| General | Watchdog: yes Real-time clock (RTC): yes, backup by super capacitor Buzzer: yes Power input voltage: +9~+48VDC power input (terminal block or DC Jack) Dimensions (WxLxH): 82.6 x 108.4 x 32.6mm Installation: wall mounting or DIN-Rail mounting |
S/W Specifications
| Operation System | Linux kernel 4.19.x Supports bootup from eMMC or SD card Boot Loader : barebox File System : EXT4/ETX3/ETX2, VFAT/FAT, NFS |
|---|---|
| Software Development | Toolchain: gcc 6.2.x + glibc 2.24 Supports in-place C/C++ code compilation |
| Package Management | Package repository: self-maintained repository Command: using standard apt-get command |
| Popular Packages | Web server: Apache/Nginx/Lighttpd D atabase: MySQL/SQLite3/PostgreSQL Script language: PHP/Python/Perl/NodeJS Text editor: vim/nano/sed A dministration: Webmin |
