IWF 610

IP67 Industrial Mesh Access Point

Main Feature

Multiple operation mode (Mesh/AP/Client mode) meets diversified deployment
Heavy industrial grade with Level-4 EMC immunity to Surge, ESD and EFT plus -40~75°C operation temperature
Dual band, dual high power radios
Multiple VAPs in each Wi-Fi radio: Mesh and AP can exist in the same radio (up to 8 x VAP for each radio)
Up to 27 dBm high RF power for longer communication range
High throughput performance ideally for video surveillance and data transmission simultaneously
Dual power redundancy (DC and PoE)
Wireless security: WEP, WAP/WPA2 , WPA2-personal, WPA2- Enterprise, Hidden ESSID, MAC address filtering
Easy configuration and management EMWatch software
IP67 certified

EMBUX IWF 610 is a dual band, dual concurrent Wi-Fi Mesh AP which supports Mesh, AP and Client modes. This is dedicated design for heavy industrial environment. With the Wi-Fi Mesh technology, IWF 610 provides most reliable wireless connectivity with intelligent multi-path mechanism. It establishes robust access and backbone infrastructure. To meet the requirement of critical environment, IWF 610 equips with wide temperature (-40~75°C), IP67 protection, highest standard level-4 EMC immunity capability.

For security consideration, IWF 610 gives user versatile selection of different encryption (pre-shared key and Enterprise) black list and white list protection mechanism. Together with nCare, I4.0 network manager, IWF 610 can be easily managed. Thus, effectively reduce the cost for network maintenance and management effort.

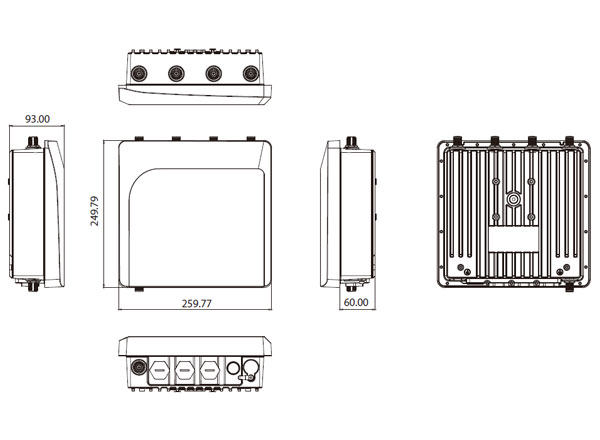

Dimension Drawing

Wireless Radio	IEEE802.11a/b/g/n, MIMO 2 x 2
Frequency Ranges	2.4 GHz -- 2.412-2.472 GHz 5 GHz -- USA: 5.15~5.25 GHz, 5.725~5.825 GHz -- Europe: 5.15~5.35 GHz, 5.47~5.725 GHz
RF Output Power :	802.11a -- 6Mbps: 27 dBm -- 54Mbps: 24 dBm 802.11g -- 6Mbps: 27 dBm -- 54Mbps: 24 dBm 802.11 an/gn -- MCS0: 27 dBm -- MCS7: 24 dBm
Hardware	WAN: 10/100/1000 Base -TX MDI/MDIX LAN: 10/100/1000 Base -TX MDI/MDIX Compliant with : -- IEEE802.3/802.3u -- Hardware based 10/100/1000, full/half, flow control auto negotiation Push buttons: -- 1 x reset/restore to default LED: -- 2 X Ethernet -- 2 X 11an Radio -- 1 X Power/Status Antenna port: -- 4 X N-type connector
Compliance	IEC 60950, 2nd Edition EN 60950, 2nd Edition IEC 61000-4-2 Level 4 ESD Immunity IEC 61000-4-4 Level 4 Electrical Fast Transient Burst Immunity IEC 61000-4-5 Level 4 Surge Immunity
Wi-Fi Security	Open \| WEP WAP/WPA2 Mixed WPA2-personal (PSK+CCMP/AES) WPA EAP WPA2 EAP Hidden ESSID support MAC address filtering (MAC ACL) Station isolation
System Management	Web-based GUI SNMP V1/V2c/V3 Event log SYSLOG Configuration backup and restore Restore factory default setting Remote firmware upgrade EmWatch configuration support nCare network management (2nd phase)
Physical and Power	12~48 VDC PoE (Standard PoE 802.3at) Wall/VESA/Pole mountable (Pole mount kit is an optional accessory) Dimension: 250mm x 260mm x 93mm Weight: 2.5Kg
Environment Protection	IP67 water & dust proof Operating temperature: -40~75°C (altitude : up to 3000m) Storage temperature: -40~85°C Humidity: 0% to 95% maximum (Non-condensing) Vibration: random 0.3g
Certification	Radio approvals -- FCC Part 15.247, 15.407 -- EN 300 328 -- EN 301 893 EMC -- FCC part 15.107, 15.109 -- EN 301 489-1, -17
