ELA-MA

Serial to LoRa Wireless Adaptor

Main Feature
  • Serial to LoRa convertor
  • Easy to setup and maintain
  • Long distance ( up to 2,000 meters )
  • Up to 255 Bytes per packet
  • Receiving sensitivity: -137 dBm
  • 5~24V & 5V Micro USB power supply (alternative)
  • Broadcast mode (no pairing required)
  • Secured AES encryption in wireless communication

Cable deployment is always costly for deployment and maintenance. Longer distance introduces much higher overall cost. ELA-MA is a reliable and cost effect solution to cable replacement in RS232/485 transmission. ELA-MA can achieve very good wireless performance in 2 Km distance with 90% successful transmission rate. For data transmission, ELA-MA uses LoRa 862~932 MHz to convert RS232/485 serial data among devices with LoRa wireless technology. ELA-MA is designed for easy setup and maintenance. Multi-end points can form a broadcast network, with the same frequency and encryption the end points can communicate without pairing in advance. Thus, effectively reduce the effort in deployment and maintenance.

Main Chip LoRa Transmission : Semtech SX1272
Soc : Cortex®-M0
Memory: Flash 128K
Wireless Interface Modulation: LoRa
Frequency: 862 ~ 932MHz
Frequency Accuracy: ± 10KHz
Data Rate: 0.244 ~ 18.2Kbps(LoRa)
Antenna Impedance: 50ohm
RF Output Power 2 ~ 20dBm
Receive sensitivity -137dBm
LoRa Communication Distance 2 ~ 5Km
Baud Rate RS232/RS485:
Half Duplex of RS232
- Baud Rate to 9600、19200、38400、57600、115200bps
Half Duplex of RS485
- Baud Rate to 9600、19200、38400、57600、115200bps
Power Source Supply Voltage: 5 ~ 24VDC Terminal Block
5V Micro USB (alternative)
Power Consumption Standby:
- 5V: 15mA
- 12V: 7mA
- 24V: 4mA
Transmission:
- 5V: 115mA
- 12V: 44mA
- 24V: 23mA
Environment Operating Temperature: 0℃~ 50℃

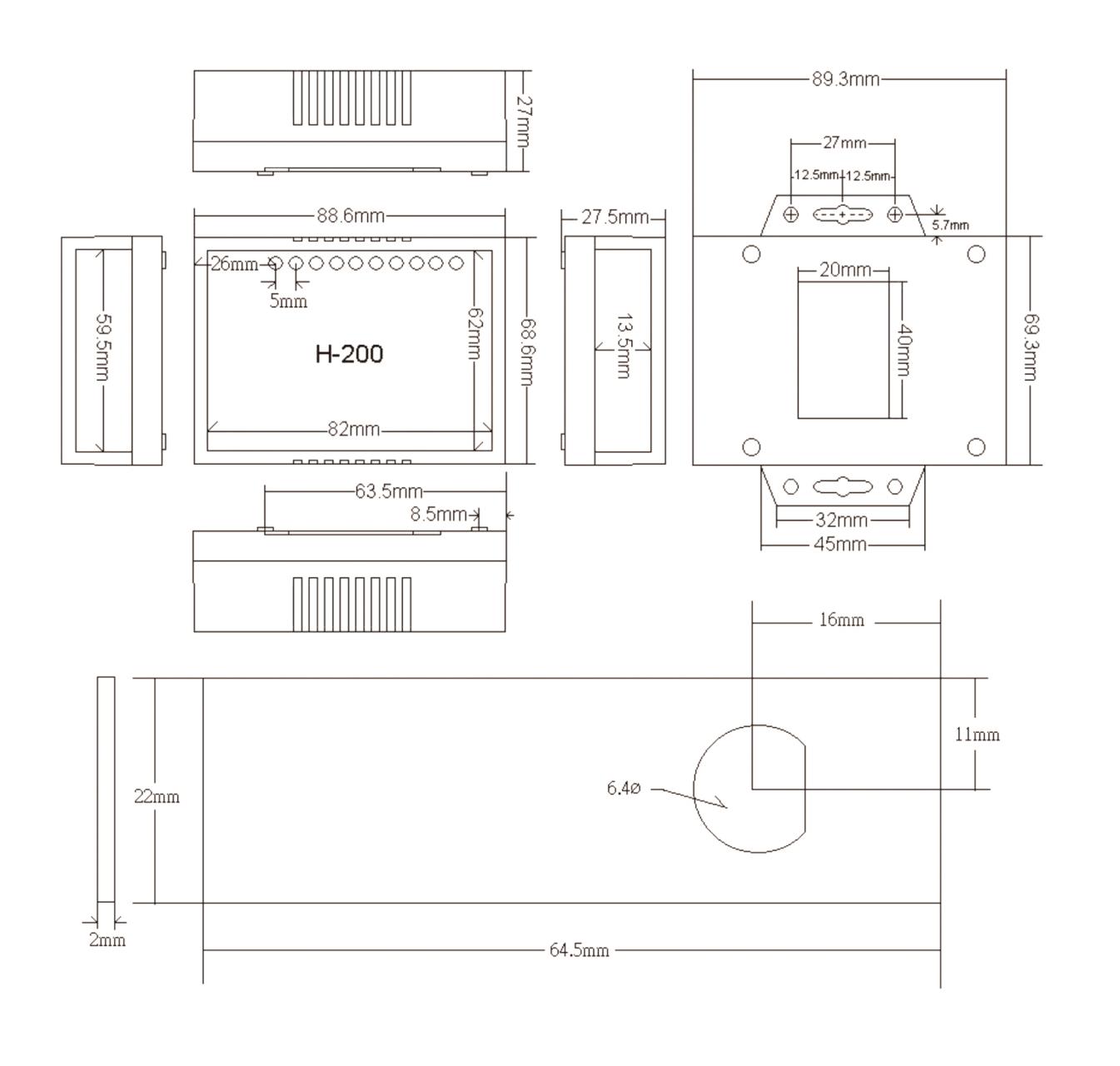

Mechanism Dimensions: W*H*D: 27*89*68 (mm)
Weight: 82± 5g
Physical and Power Supply Voltage: +5 ~ 24VDC Terminal Block
+5V Micro USB (alternative)
Certification FCC, CE
System Management Com port support system firmware upgrade
