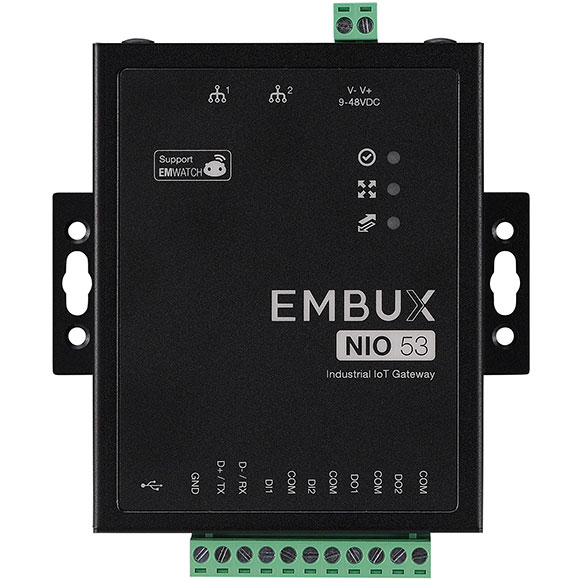

NIO 53-CM
NIO 53-CM
Linux Ready ARM Embedded System
Main Feature
| CPU/Memory | CPU: NXP i.MX6ULL Cortex-A7 MPCore, up to 800MHz SDRAM: 512MB, LvDDR3 |
|---|---|

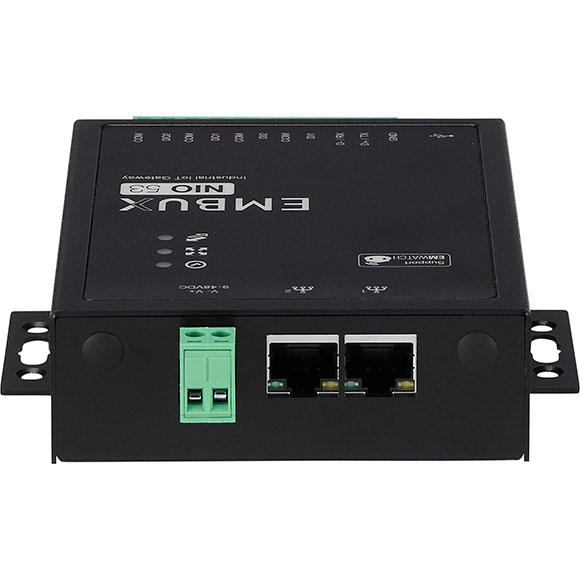

| Network Interface | Type: 2 x 10/100Mbps ethernet Connector type: RJ45 (with LED indicator) |
| TTY (Serial) Ports | 1 x RS 485 or RS 232 Direction control (RS 485): auto, by software Connector: terminal block RS 485 signal: Data+, Data RS 232 signal: TX, RX |

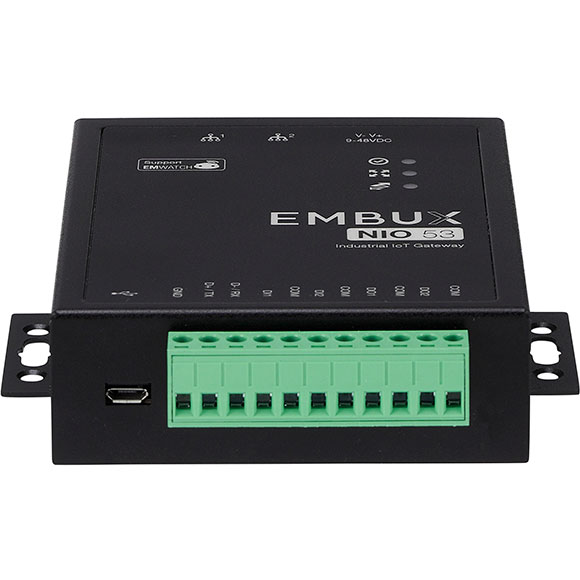

| USB Interface | 1 x USB OTG port MicroUSB connector |
| Console/Debug Ports | Serial console port (inside the box) |
| Digital Input | 2 x digital input channels Isolation protection: 2500Vrms (photo coupler) Logical high: 5~24VDC Logical low: 0~1.5VDC |
| Relay Output | 2 x Digital output channels (solid state relay) Solid state relay, normal open (no) type Contact rating: 80VDC@1.5A LED indicator: yes |
| SD Slot | 1 x micro SD socket SD 2.0 compliant, support SDHC Storage capacity: support up to 128G |
| Expansion | 1 x mini-PCIe full size socket 1 x micro SIM card socket, USB interface reserved 2 x SMA type antenna hole reserved |
| General | Watchdog: yes Real time clock (RTC): yes, backup by super capacitor Power input voltage: +9~+48VDC (terminal block) Typical consumption: 12VDC@250mA Dimensions (W x L x H): 89 x 112 x 30mm (3.5 x 4.4 x 1.18in) Net weight: 350g (0.77lb) Operating temperature: 0~70°C (32~158°F) Regulation: CE Class A, FCC Class A Installation: wall mounting, DIN rail mounting (with optional kit) |
| Operation System | Linux kernel 4.19.x Support bootup from eMMC or SD card Boot loader: U boot File system: EXT4/EXT3/EXT2, VFAT/FAT, NFS |
| Software Development | Toolchain: gcc 8.2.0 + glibc 2.28 Supports in place C/C++ code compilation |
| Package Management | Package repository: self maintained repository Command: using standard apt get command |
| Popular Packages | Web server: Apache/Nginx/Lighttpd Database: MySQL/SQLite3/PostgreSQL Script language: PHP/Python/Perl/NodeJS Text editor: vim/nano/sed Administration: webmin |
